eLab

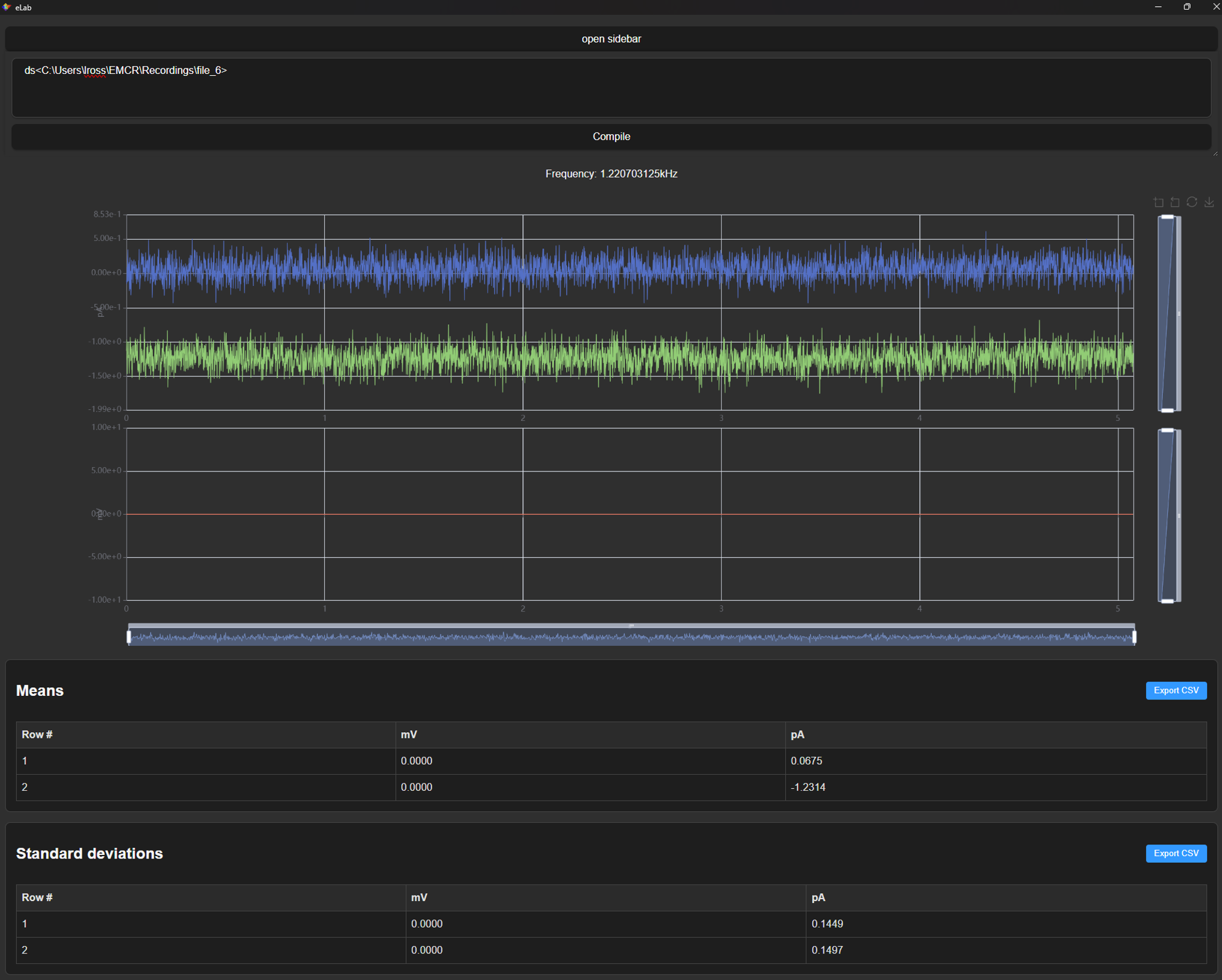

eLab is the new data analysis software developed by Elements to streamline workflows for researchers working with electrophysiology and nanopore data. Designed with a lightweight interface, it allows users to easily process and visualize large datasets with minimal effort.

  • Streamlined Workflows: Build and reuse complex analysis pipelines quickly by combining simple, copy-and-paste command strings.
  • Data File Support: Direct compatibility with standard .abf files, seamlessly handling single gap-free, episodic, or multi-file datasets.
  • Visual Data Insights: Every single operation or combination of commands automatically generates a clear plot.

Supported Analysis

  • Highly Customizable Filters: apply arbitrary-order IIR (Butterworth) low-pass filters to clean your signals.
  • Histogram & PSD: built-in tools for immediate data distribution analysis and Power Spectral Density estimation.
  • Generalized XY Graphs: plot any variable against another without rigid constraints, ideal for standard I/V curves, V/I curves, or custom variable combinations.
  • Channel Arithmetic: perform mathematical operations directly between different recorded channels.
  • Instant Statistics: automatically displays relevant quantitative metadata at the bottom of the screen, such as sampling rate, signal mean, and standard deviation.
  • Region of interest (ROI): isolate and perform operations or computations on a specific, continuous subset of your data.
  • Selective Channel Filtering: filter your workspace to display and analyze only specific data channels (e.g., displaying only current readout or only voltage stimulus channels).

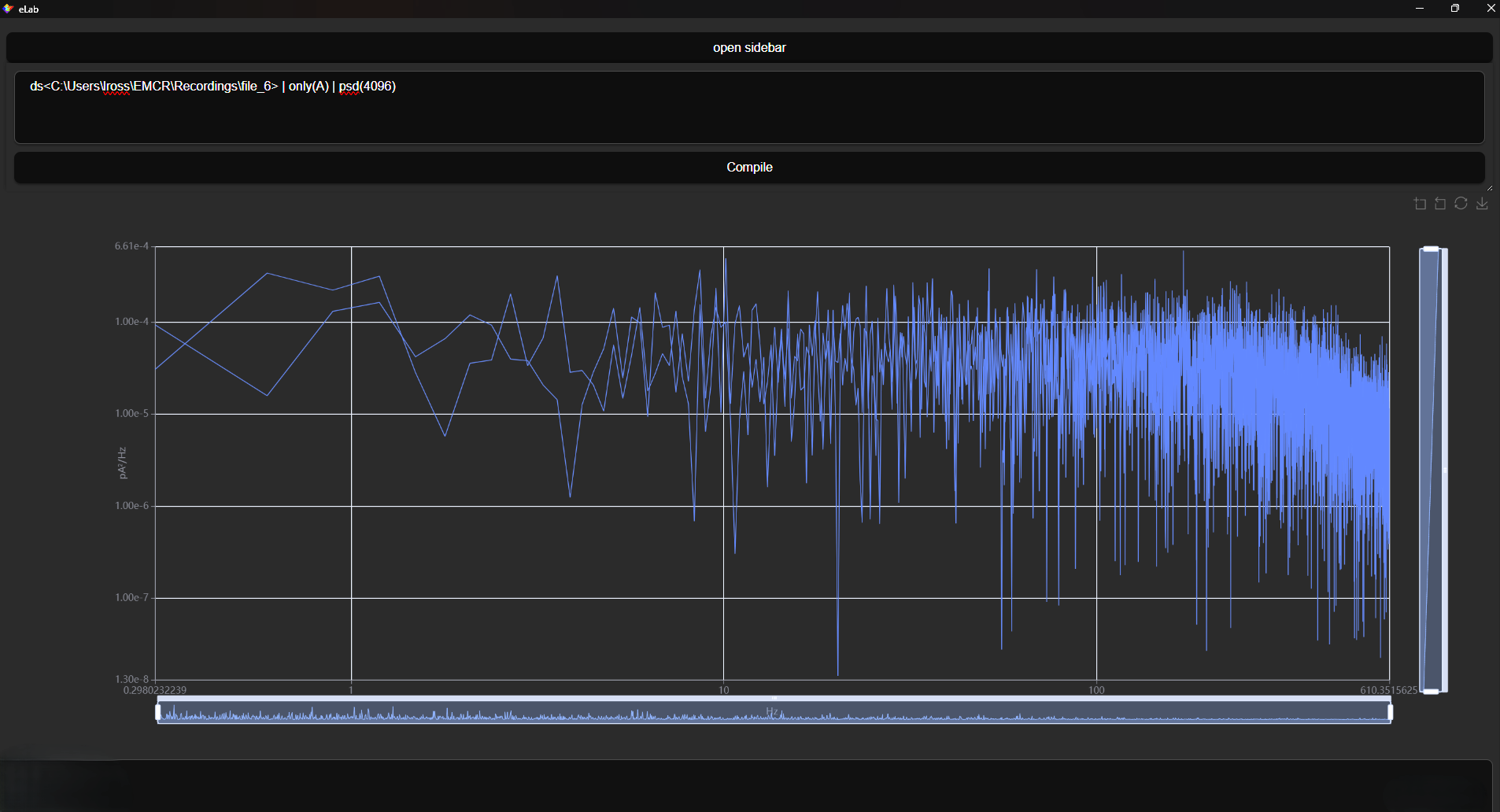

PSD

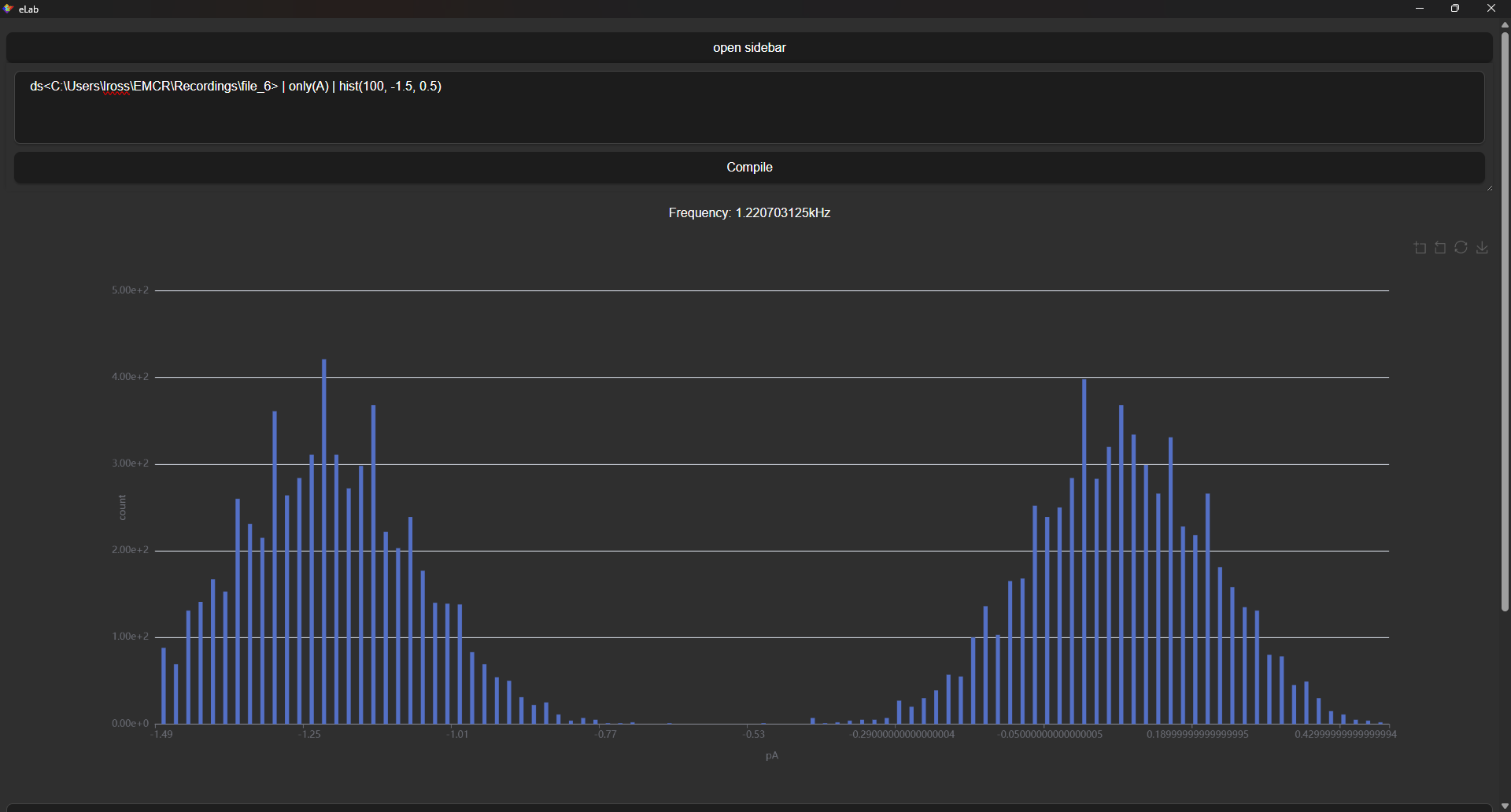

Histogram

⚠️  Active Development Notice
This software is currently under active development. Your experience matters to us: bug reports, feature requests, and general feedback are greatly appreciated to help us improve.

Requirements

Minimum:

  • Windows 10, 11
  • Dual core 2.0 GHz CPU
  • 4 GB RAM

Recommended:

  • Quad core 2.6 GHz CPU
  • 16 GB RAM
